The portable ultrasound biomicroscope (UBM)
Ophthalmic ultrasound
is a unique non invasive diagnostic tool providing information even in
presence of opaque media and pigmented tissues.
With

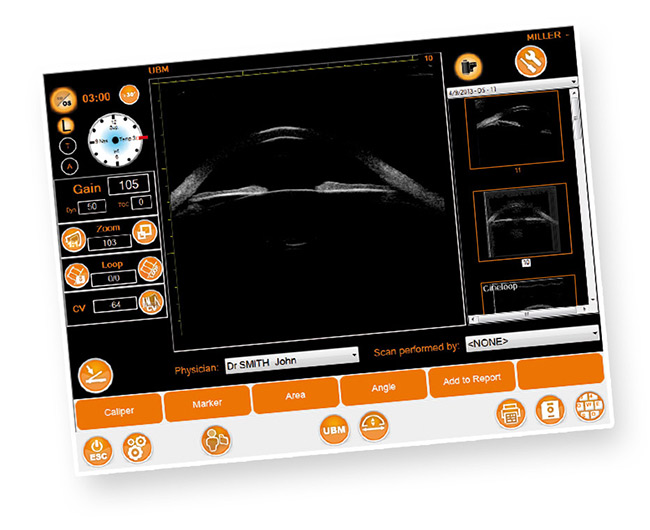

Compact Touch STS UBMTM, take advantage of ultrasound biomicroscopy
technology

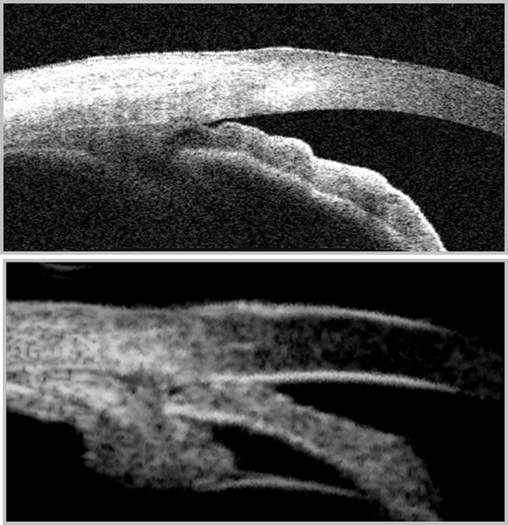

to see more: visualize the anterior chamber structures and image all those invisible to optical systems (ciliary bodies,
sulcus…).
Compact
Touch STS/UBMTM offers a competitive UBM solution
to practices where understanding glaucoma and its underlying causes are critical as well as evaluating the efficiency of
glaucoma surgery (iridotomy, blebs…).
It also provides valuable information in pre and post cataract surgery and for
imaging mass lesions.
Quantel

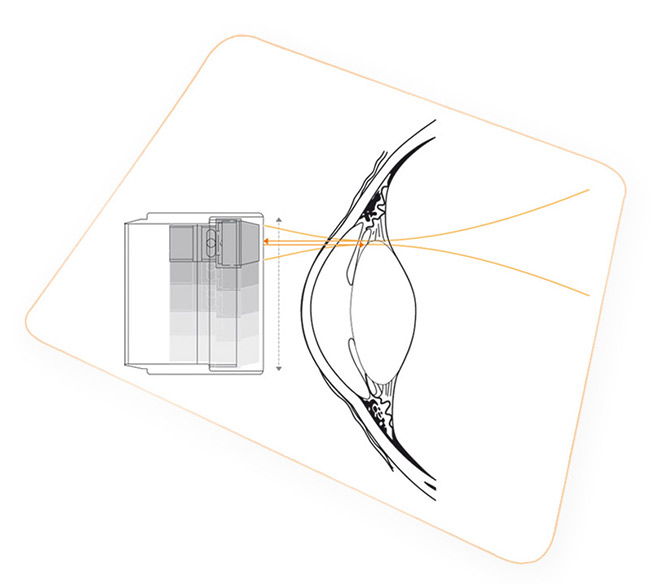

Medical’s proprietary linear scanning technology utilizes an electromagnetic linear motor, which optimizes image acquisition
and resolution in a lightweight design.
The Compact Touch

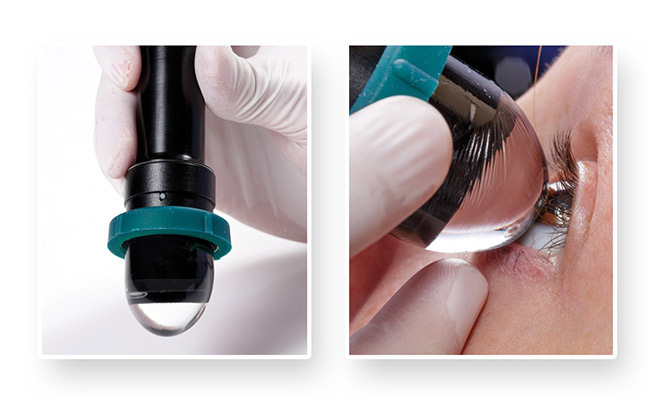

STS/UBMTM was designed for use with the is ClearscanTM
sterile probe cover, which simplifies the UBM exam
for both the doctor and patient.
This stand-alone
and transportable UBM unit also offers an optional automated sulcus to sulcus
measurement software for ICLTM

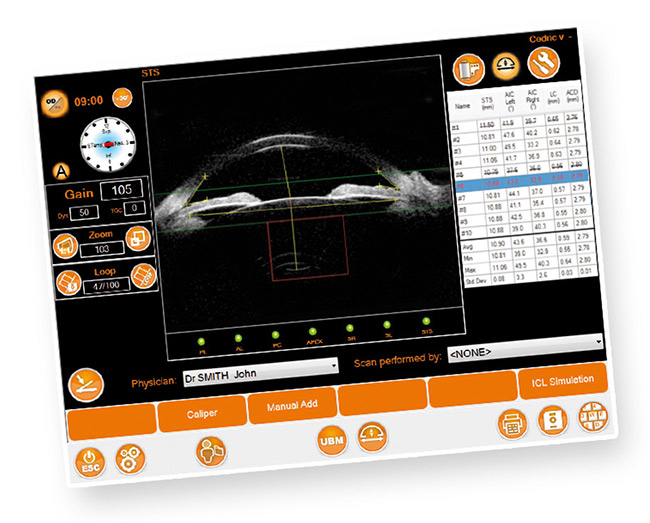

lenses implanters. The sizing of the lens, a simulation of its placement
between the sulcuses and safety measurements are available in this unique software.
|
|
UBM Technical information
DATA MANAGEMENT
- Built-in physician and patient database
- Exportation of still images and video sequences
- Customizable digital and printed reports
- EMR compatible
- Compatible with PC and USB video printer
- Storage of still images and video sequences (up to 10 second duration) on hard disk
- Image post-processing tools: callipers, areas, angles, markers, comments
GENERAL INFORMATION
- Back-lit LCD color touch screen monitor
- Definition: 1024 x 768 x 256 grey levels
Electrical requirements
- Power supply: 100-240 Vac ±10% single phase without earth
- Frequency: 47/63 Hz
- Power: 70 VA max
Features
- Overall dimensions: 37.5 cm (W) x 10 cm (D) x 27 cm (H); 14.76” (W) x 3.94” (D) x 10.63” (H)
- Touch screen dimensions: 10.4” – 21 cm (W) x 16 cm (H); 8.3” (W) x 6.3” (H)
- Weight: 4.28 Kg (9.26 lb)
- Ports: 2 USB, 1 ethernet
Peripherals and accessories
- Keyboard* with USB
- Mouse with USB
- External PC printer Windows®7 (32 bits) compatible*
- Video printer with USB connection*
- Footswitch
- Carrying case
- Connection to medical servers via EMR
UBM probe
- Transducer frequency: 50 MHz
- Linear transducer movement: exploration width 16mm (0.63”)
- Focus: 9 to 11 mm (0.35” to 0.43”)
- Axial resolution: 35 µm
- Lateral resolution: 60 µm
- Adjustable gain: 20 to 110 dB
- Time Gain Control (TGC): 0 to -30 dB
- Dynamic range adjustment: from 20 to 90 dB
(*) Option
